ISANschema_v1.1

Target Namespace	http://www.isan.org/schema/v1.1/common/common
Version	1.1
Element and Attribute Namespaces	Global element and attribute declarations belong to this schema's target namespace. By default, local element declarations belong to this schema's target namespace. By default, local attribute declarations have no namespace.
Schema Composition	This schema imports schema(s) from the following namespace(s): http://www.w3.org/XML/1998/namespace (at http://www.w3.org/2001/XML.xsd)
Documentation	ISAN XML Schema: common types used in other descriptive information types Date: 01-02-2008 Copyight ISAN International Agency The duration or running time of an AV work. TimeValue: Approximate duration in the specified unit. A positive, not null integer number. TimeUnit: The unit of time in which the duration is expressed. A year representation A "Yes" or "No" choice / answer Enumerated values for the Color attribute of an AV Work A 40 character ID

Prefix	Namespace
Default namespace	http://www.isan.org/schema/v1.1/common/common
xml	http://www.w3.org/XML/1998/namespace
xs	http://www.w3.org/2001/XMLSchema

Super-types:	None
Sub-types:	None

Name	DurationType
Abstract	no

Super-types:	xs:string < ColorType (by restriction)
Sub-types:	None

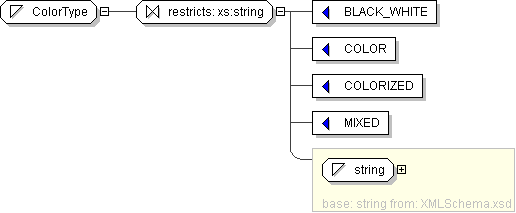

Name	ColorType
Content	Base XSD Type: string value comes from list: {'BLACK_WHITE'\|'COLOR'\|'COLORIZED'\|'MIXED'}

Super-types:	xs:string < IdType (by restriction)
Sub-types:	None

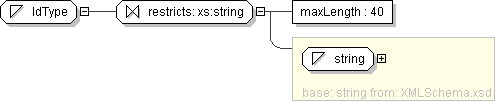

Name	IdType
Content	Base XSD Type: string length <= 40

Super-types:	xs:string < TimeUnitType (by restriction)
Sub-types:	None

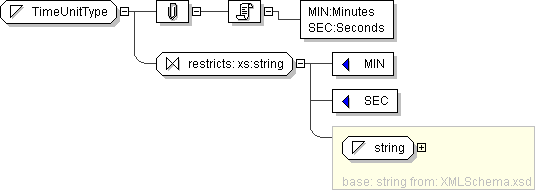

Name	TimeUnitType
Used by (from the same schema document)	Complex Type DurationType
Content	Base XSD Type: string value comes from list: {'MIN'\|'SEC'}
Documentation	MIN: Minutes SEC: Seconds

Super-types:	xs:string < YearType (by restriction)
Sub-types:	None

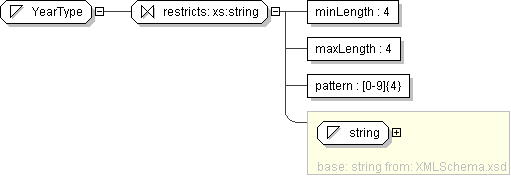

Name	YearType
Content	Base XSD Type: string pattern = [0-9]{4} length >= 4

Super-types:	xs:string < YesOrNoType (by restriction)
Sub-types:	None

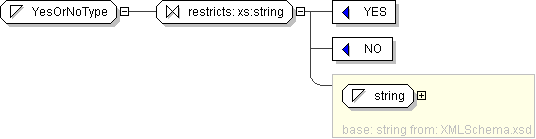

Name	YesOrNoType
Content	Base XSD Type: string value comes from list: {'YES'\|'NO'}
