| Name |

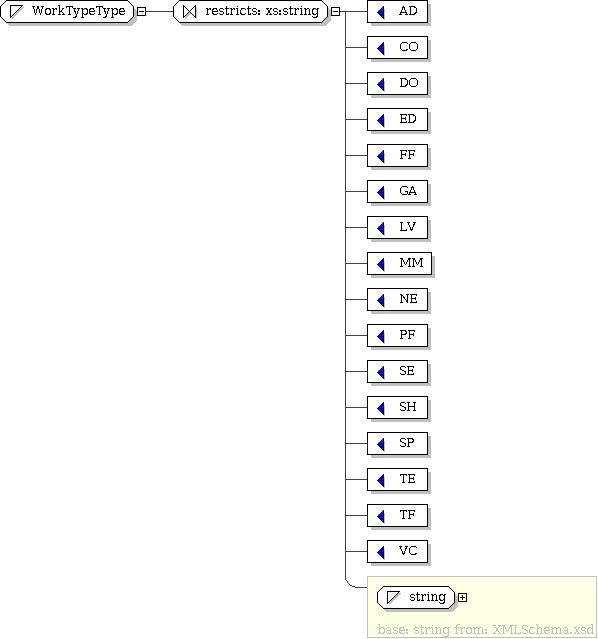

WorkTypeType |
| Used by (from the same schema document) |
Complex Type

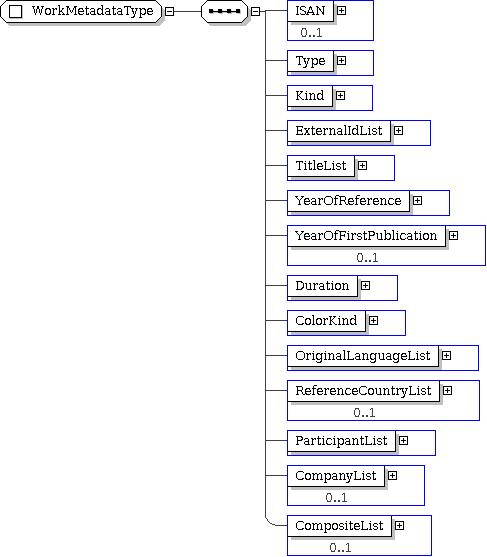

WorkMetadataType
|
| Content |
-
value comes from list: {'AD'|'CO'|'DO'|'ED'|'FF'|'GA'|'LV'|'MM'|'NE'|'PF'|'SE'|'SH'|'SP'|'TE'|'TF'|'VC'}
|
| Documentation |
AD : Commercials / Advertising film / Trailers | Works which promotes a product, service, idea, person or company, including promotional material for consumer products, services shown in theaters and infomercials.Also concerns trailers (promotional advertising for a film or television production).
CO : Compilation | 1 - A single featured work packaged with several related works (e.g. the traditional DVD with bonus features)- each work in the compilation would have its own Work record. | 2 - A Boxed Set made of two or more featured works in a single package- South Park Season One, Indiana Jones Trilogy, etc… - each work in the Boxed Set Should have its own Work Record
DO : Documentary | A moving image production providing a factual archive or report depicting persons, animals, vegetables and plants, events or industrial processes.
ED : Educational | Works restricted to traditional training, coursework, classroom or distance learning. Such works are primarily intended to educate rather than entertain.
FF : Feature Film | Work, usually originally released theatrically or direct to video.
GA : Video Game | Game composed of a computer-controlled virtual universe that players may interact with in order to achieve a goal.
LV : Live Event | All non fiction works recording live events except related to sport or performances which have their own types. Examples include extensive coverage of political conventions, talk shows, live recordings of political debates, elections, space coverage, marriage, funerals, etc…
MM : Multimedia | Audiovisual work with interactivity.
NE : News | An audio visual production which reports on topics of current interest. Non fiction programming, reporting and commentary on current events, usually organized into reports from various correspondents.
PF : Performance | Works documenting a performance including concerts, dance, music, opera, stage production, recitation, magic, circus, stand-up comedy, burlesque, vaudeville or other variety stage act. Performance is a subset of live event (LV).
SE : Dramatic and Comedy Series, Serials, "Soaps" | A set of fiction works often with the same main actors or on related subjects and open-ended television drama or comedy where the story continues from episode to episode.
SH : Short | Fiction work, usually originally released theatrically or direct to video, with an original length less than feature film. This includes short animated works.
SP : Sporting Event, Sports Related Program | Non fiction productions reporting on sporting events. Sport is a subset of live event (LV).
TE : Other Television entertainment | Programming intended for airing on television including reality programs, magazines, variety, game shows, except where otherwise categorized.
TF : TV movie or Telefilm | A work intended for television broadcast.
VC : Music Video Clip. | Short audiovisual non live production which shows images related to a specific sound recording.
|
Complex Type:
Schema Component Type
AusAddress
Schema Component Name
| Super-types: |
Address < AusAddress (by extension) |
| Sub-types: |
-
QLDAddress (by restriction)
|
If this schema component is a type definition, its type hierarchy is shown in a gray-bordered box.
The table above displays the properties of this schema component.
XML Instance Representation
<...
country="Australia"
>
<unitNo> string </unitNo> [0..1]
<houseNo> string </houseNo> [1]
<street> string </street> [1]
Start Choice
[1]
<city> string </city> [1]
<town> string </town> [1]
End Choice
<state> AusStates </state> [1]
<postcode> string <<pattern = [1-9][0-9]{3}>> </postcode> [1]
?
</...>
The XML Instance Representation table above shows the schema component's content as an XML instance.
- The minimum and maximum occurrence of elements and attributes are provided in square brackets, e.g. [0..1].
- Model group information are shown in gray, e.g. Start Choice ... End Choice.
- For type derivations, the elements and attributes that have been added to or changed from the base type's content are shown in bold.
- If an element/attribute has a fixed value, the fixed value is shown in green, e.g. country="Australia".
- Otherwise, the type of the element/attribute is displayed.
- If the element/attribute's type is in the schema, a link is provided to it.
- For local simple type definitions, the constraints are displayed in angle brackets, e.g. <<pattern = [1-9][0-9]{3}>>.
- If a local element/attribute has documentation, it will be displayed in a window that pops up when the question mark inside the attribute or next to the element is clicked, e.g. <postcode>.
Schema Component Representation
<complexType
name="AusAddress">
<complexContent>
<extension
base="
Address
">
<sequence>
<element
name="state" type="
AusStates
"/>
<element
name="postcode">
<simpleType>
<restriction
base="
string
">
<pattern
value="[1-9][0-9]{3}"/>
</restriction>
</simpleType>
</element>
</sequence>
<attribute
name="country" type="
string
" fixed="Australia"/>
</extension>
</complexContent>
</complexType>
The Schema Component Representation table above displays the underlying XML representation of the schema component. (Annotations are not shown.)
Abstract
(Applies to complex type definitions and element declarations). An abstract element or complex type cannot used to validate an element instance. If there is a reference to an abstract element, only element declarations that can substitute the abstract element can be used to validate the instance. For references to abstract type definitions, only derived types can be used.
All Model Group
Child elements can be provided in any order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-all.
Choice Model Group
Only one from the list of child elements and model groups can be provided in instances. See: http://www.w3.org/TR/xmlschema-1/#element-choice.
Collapse Whitespace Policy
Replace tab, line feed, and carriage return characters with space character (Unicode character 32). Then, collapse contiguous sequences of space characters into single space character, and remove leading and trailing space characters.
Disallowed Substitutions
(Applies to element declarations). If substitution is specified, then substitution group members cannot be used in place of the given element declaration to validate element instances. If derivation methods, e.g. extension, restriction, are specified, then the given element declaration will not validate element instances that have types derived from the element declaration's type using the specified derivation methods. Normally, element instances can override their declaration's type by specifying an xsi:type attribute.
Key Constraint
Like Uniqueness Constraint, but additionally requires that the specified value(s) must be provided. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.
Key Reference Constraint
Ensures that the specified value(s) must match value(s) from a Key Constraint or Uniqueness Constraint. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.
Model Group
Groups together element content, specifying the order in which the element content can occur and the number of times the group of element content may be repeated. See: http://www.w3.org/TR/xmlschema-1/#Model_Groups.
Nillable
(Applies to element declarations). If an element declaration is nillable, instances can use the xsi:nil attribute. The xsi:nil attribute is the boolean attribute, nil, from the http://www.w3.org/2001/XMLSchema-instance namespace. If an element instance has an xsi:nil attribute set to true, it can be left empty, even though its element declaration may have required content.
Notation
A notation is used to identify the format of a piece of data. Values of elements and attributes that are of type, NOTATION, must come from the names of declared notations. See: http://www.w3.org/TR/xmlschema-1/#cNotation_Declarations.
Preserve Whitespace Policy
Preserve whitespaces exactly as they appear in instances.
Prohibited Derivations
(Applies to type definitions). Derivation methods that cannot be used to create sub-types from a given type definition.
Prohibited Substitutions
(Applies to complex type definitions). Prevents sub-types that have been derived using the specified derivation methods from validating element instances in place of the given type definition.
Replace Whitespace Policy
Replace tab, line feed, and carriage return characters with space character (Unicode character 32).
Sequence Model Group
Child elements and model groups must be provided in the specified order in instances. See: http://www.w3.org/TR/xmlschema-1/#element-sequence.
Substitution Group
Elements that are members of a substitution group can be used wherever the head element of the substitution group is referenced.
Substitution Group Exclusions
(Applies to element declarations). Prohibits element declarations from nominating themselves as being able to substitute a given element declaration, if they have types that are derived from the original element's type using the specified derivation methods.
Target Namespace
The target namespace identifies the namespace that components in this schema belongs to. If no target namespace is provided, then the schema components do not belong to any namespace.
Uniqueness Constraint
Ensures uniqueness of an element/attribute value, or a combination of values, within a specified scope. See: http://www.w3.org/TR/xmlschema-1/#cIdentity-constraint_Definitions.
